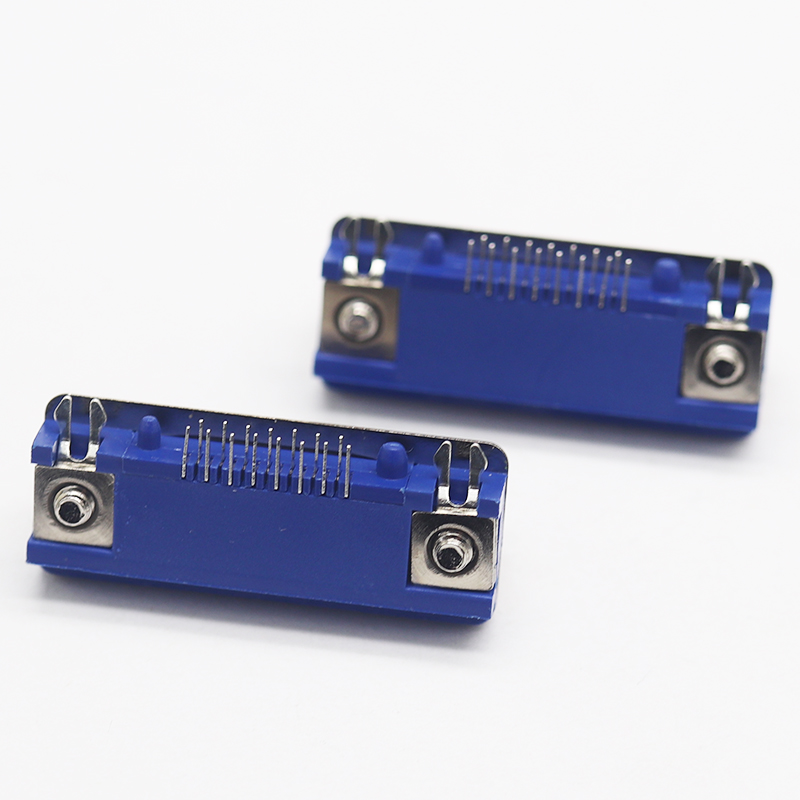

SLIM 15P母头前七后八沉板式 铆合蓝胶
PDF文档下载
详细介绍
1-材料（MATERIAL)
胶芯：PA9T/PA6T/PBT/LCP
Housing:PA9T/PA6T/PBT/LCP
端子：铜合金
Contact：Brass
铁壳：Brass
2-特性（characteristics):
额定电流：3 AMP.
Raring Current:3 AMP .
接触阻抗：25mΩ MAX.
Contact Resistance:25mΩ MAX.
绝缘阻抗：5000MΩMIN.
Insulating Resistance:5000MΩMIN.
耐电压：AC 1000V
Withstanding Voltage:AC 1000V
温度范围：-55度至+105度
Temperture Range：-55℃to +105℃
