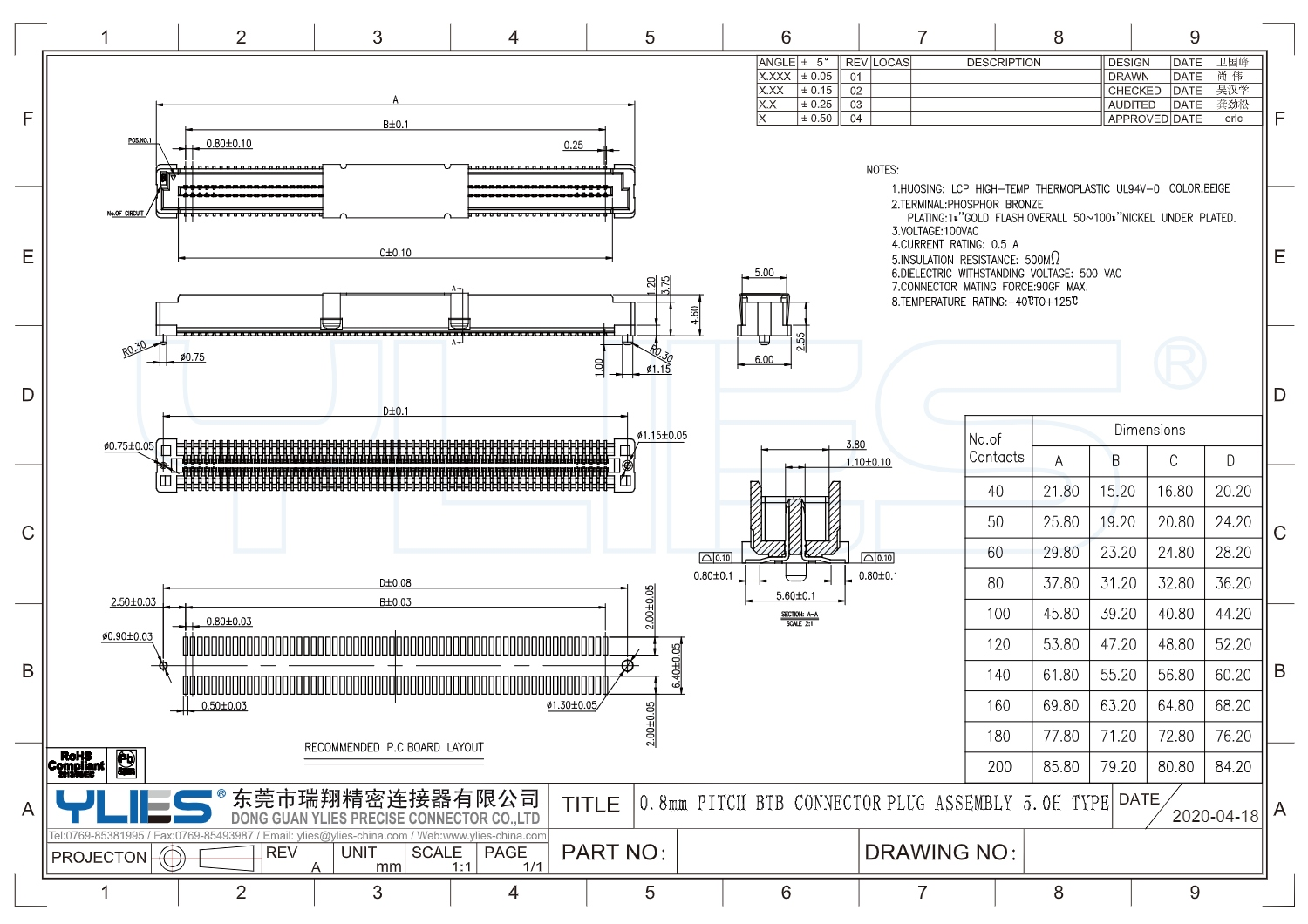

NOTES:

1.HUOSING: LCP HIGH-TEMP THERMOPLASTIC UL94V-OCOLOR:BEIGE

2.TERMINAL:PHOSPHOR BRONZE

PLATING:1μ"GOLD FLASH OVERALL 50~100*"NICKEL UNDER PLATED.

3.VOLTAGE:100VAC

4.CURRENT RATING: 0.5 A

5.INSULATION RESISTANCE: 500mΩ

6.DIELECTRIC WITHSTANDING VOLTAGE: 500 VAC

7.CONNECTOR MATING FORCE:90GFMAX.

8.TEMPERATURE RATING:-40CT0+125℃
